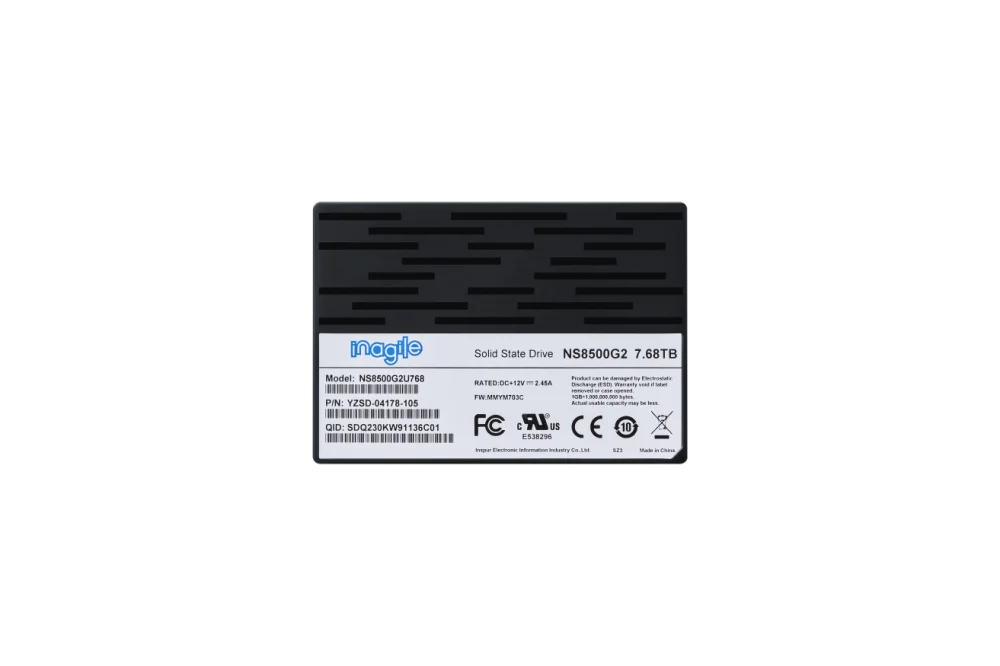

NS8500G2

Extreme Energy Efficiency、Extreme Reliability、Extreme Stability

NS8500G2

Enterprise-Class Dual Port NVMe SSD

Product Introduction

The NS8500G2 Dual-Port is a high-performance enterprise-class dual-port solid-state drive (SSD). It adopts a PCIe Gen4.0 2x2 enterprise-grade controller and 3D eTLC NAND solution, complies with the NVMe 1.4 protocol, and is tailored for read-intensive applications. Developed with Suzhou Yingji's self-architected firmware and hardware design, the NS8500G2 features high performance, durability, and reliability, ensuring high-speed and stable read/write IOPS and bandwidth with extremely low jitter latency. It can be applied to system layers, performance layers, and storage layers for scenarios such as databases, cloud services, and big data.

Product Features

Product Parameters

Name		NS8500G2
Type		2.5 inch NVMe SSD
Form Factor		U.2
Interface		PCIe Gen4 x4
Capacity		1.92TB	3.84TB	7.68TB
128KB sequential read	Port0	PCIe Gen3: 1600MB/s PCIe Gen4: 3400MB/s	PCIe Gen3: 1600MB/s PCIe Gen4: 3400MB/s	PCIe Gen3: 1600MB/s PCIe Gen4: 3400MB/s
128KB sequential read	Port1	PCIe Gen3: 1600MB/s PCIe Gen4: 3400MB/s	PCIe Gen3: 1600MB/s PCIe Gen4: 3400MB/s	PCIe Gen3: 1600MB/s PCIe Gen4: 3400MB/s
128KB sequential write	Port0	PCIe Gen3: 1300MB/s PCIe Gen4: 1300MB/s	PCIe Gen3: 1400MB/s PCIe Gen4: 2500MB/s	PCIe Gen3: 1400MB/s PCIe Gen4: 2800MB/s
128KB sequential write	Port1	PCIe Gen3: 1300MB/s PCIe Gen4: 1300MB/s	PCIe Gen3: 1400MB/s PCIe Gen4: 2500MB/s	PCIe Gen3: 1400MB/s PCIe Gen4: 2800MB/s
4KB sustained random read	Port0	PCIe Gen3: 350IOPs PCIe Gen4: 380IOPs	PCIe Gen3: 350IOPs PCIe Gen4: 630IOPs	PCIe Gen3: 350IOPs PCIe Gen4: 650IOPs
4KB sustained random read	Port1	PCIe Gen3: 350IOPs PCIe Gen4: 380IOPs	PCIe Gen3: 350IOPs PCIe Gen4: 630IOPs	PCIe Gen3: 350IOPs PCIe Gen4: 650IOPs
4KB sustained random write	Port0	60IOPs	100IOPs	100IOPs
4KB sustained random write	Port1	60IOPs	100IOPs	100IOPs
Average Random Read Latency (Single Port, 4K, QD=1)		81μs	81μs	81μs
Average Random Write Latency (Single Port, 4K, QD=1)		17μs	17μs	17μs
QoS Random Read (Single Port)	99%	<110μs	<110μs	<110μs
QoS Random Read (Single Port)	99.99%	<220μs	<220μs	<220μs
QoS Random Write (Single Port)	99%	<95μs	<95μs	<95μs
QoS Random Write (Single Port)	99.99%	<400μs	<400μs	<400μs
Years of quality assurance	5 years
Drive Writes Per Day（DWPD）	1
Mean Time Between Failures（MTBF）	2.60 million hours
Uncorrectable Bit Error Rate（UBER）	≤ 10-17
Data retention	3 months (≤ 40 ° C)
Hot Pluggable	Yes
Power Loss Protection	Yes
Product Certification	RoHS、CE、FCC、UL、etc.
Other Functions	NDU , atomic write, boot disk, multi-level power management, SMART , in-band and out-of-band management, temperature control, firmware authentication, etc.
